Kubernetes 1.20.11部署Dashboard

一、Dashboard简介

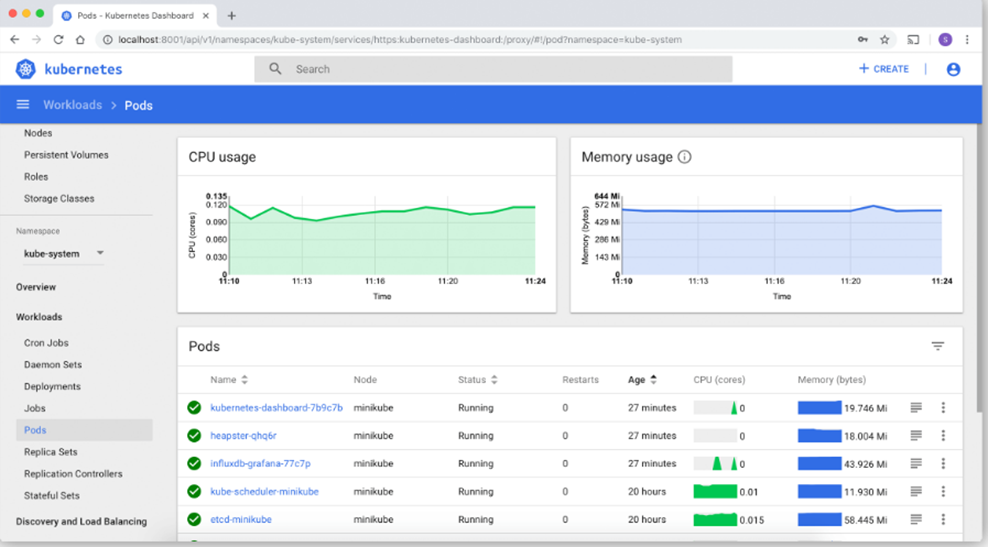

Dashboard是一个基于Web的Kubernetes用户界面。您可以使用Dashboard将容器化应用程序部署到Kubernetes集群、对容器化应用程序进行故障排除以及管理集群资源。您可以使用Dashboard了解集群上运行的应用程序的概览，以及创建或修改单个Kubernetes资源（例如Deployment、Jobs、DaemonSet 等）。例如，您可以使用部署向导扩展部署、启动滚动更新、重新启动pod或部署新应用程序。

仪表板还提供有关集群中Kubernetes资源状态以及可能发生的任何错误的信息。

二、安装Kubernetes-dashboard

注意：K8s版本：V1.20.11，基于Kubernetes-dashboard 2.2.0

1、下载配置文件

[root@master ~]# wget https://raw.githubusercontent.com/kubernetes/dashboard/v2.2.0/aio/deploy/recommended.yaml

2、修改配置文件

[root@master ~]# vim recommended.yaml

# 需要修改的内容如下所示

kind: Service
apiVersion: v1
metadata:
  labels:
    k8s-app: kubernetes-dashboard
  name: kubernetes-dashboard
  namespace: kubernetes-dashboard
spec:
  type: NodePort       # 增加内容
  ports:
    - port: 443
      targetPort: 8443
      nodePort: 30000  # 增加内容
  selector:
    k8s-app: kubernetes-dashboard

3、安装Dashboard

[root@master ~]# kubectl apply -f recommended.yaml

namespace/kubernetes-dashboard created

serviceaccount/kubernetes-dashboard created

service/kubernetes-dashboard created

secret/kubernetes-dashboard-certs created

secret/kubernetes-dashboard-csrf created

secret/kubernetes-dashboard-key-holder created

configmap/kubernetes-dashboard-settings created

role.rbac.authorization.k8s.io/kubernetes-dashboard created

clusterrole.rbac.authorization.k8s.io/kubernetes-dashboard created

rolebinding.rbac.authorization.k8s.io/kubernetes-dashboard created

clusterrolebinding.rbac.authorization.k8s.io/kubernetes-dashboard created

deployment.apps/kubernetes-dashboard created

service/dashboard-metrics-scraper created

deployment.apps/dashboard-metrics-scraper created

4、查看secret

[root@master ~]# kubectl get secret -n kubernetes-dashboard

NAME TYPE DATA AGE

default-token-859g4 kubernetes.io/service-account-token 3 4m28s

kubernetes-dashboard-certs Opaque 0 4m28s

kubernetes-dashboard-csrf Opaque 1 4m28s

kubernetes-dashboard-key-holder Opaque 2 4m28s

kubernetes-dashboard-token-7l47s kubernetes.io/service-account-token 3 4m28s

5、查看Service

[root@master ~]# kubectl get svc -n kubernetes-dashboard

NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE

dashboard-metrics-scraper ClusterIP 172.16.133.136 <none> 8000/TCP 4m7s

kubernetes-dashboard NodePort 172.16.2.59 <none> 443:30000/TCP 4m7s

6、获取Token

[root@master ~]# kubectl describe secret -n kubernetes-dashboard kubernetes-dashboard-token-7l47s

Name: kubernetes-dashboard-token-7l47s

Namespace: kubernetes-dashboard

Labels: <none>

Annotations: kubernetes.io/service-account.name: kubernetes-dashboard

kubernetes.io/service-account.uid: 83838411-a84b-4d87-824e-e0f974a48e81

Type: kubernetes.io/service-account-token

Data

====

namespace: 20 bytes

token: eyJhbGciOiJSUzI1NiIsImtpZCI6IlpZQmhlZXVmVXctQjlleG1ZVlhhbXZMb1k2Z1d2Z0FkaHFIRXU0MkNtZXMifQ.eyJpc3MiOiJrdWJlcm5ldGVzL3NlcnZpY2VhY2NvdW50Iiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9uYW1lc3BhY2UiOiJrdWJlcm5ldGVzLWRhc2hib2FyZCIsImt1YmVybmV0ZXMuaW8vc2VydmljZWFjY291bnQvc2VjcmV0Lm5hbWUiOiJrdWJlcm5ldGVzLWRhc2hib2FyZC10b2tlbi03bDQ3cyIsImt1YmVybmV0ZXMuaW8vc2VydmljZWFjY291bnQvc2VydmljZS1hY2NvdW50Lm5hbWUiOiJrdWJlcm5ldGVzLWRhc2hib2FyZCIsImt1YmVybmV0ZXMuaW8vc2VydmljZWFjY291bnQvc2VydmljZS1hY2NvdW50LnVpZCI6IjgzODM4NDExLWE4NGItNGQ4Ny04MjRlLWUwZjk3NGE0OGU4MSIsInN1YiI6InN5c3RlbTpzZXJ2aWNlYWNjb3VudDprdWJlcm5ldGVzLWRhc2hib2FyZDprdWJlcm5ldGVzLWRhc2hib2FyZCJ9.EQCjLReemQP8avSITvj_tjWWwSUK8Mgkt3hTYXJlXJfOtftEnQPKIE0OA32rUHMnbS7ViWSL5ju1Fie92HJ2ow8eSWfBKdFo9nvJ2jZMR97KCAP-HrUe7D98l_RjA1dyUWSkBlzQL2rhbcsbCr07AHu09bbmum4QaTkbOzv82LAvSyZe5nrWeu3bhXoOnX9narF4VMvAA18QK187SWIKb0lHJe-2uzbbsKaoTB7ntK53Vngr6uAk5H9p9auEq0ngucjA9sdX8rR_f577QjORi7WlbbDuZNUgf_oK7xep2MD1mAIiWZtx9vhuIUFoECMYkww-o9Fk01hglVUsOTflUA

ca.crt: 1066 bytes

方式二：

[root@master ~]# Token=$(kubectl -n kubernetes-dashboard get secret |awk '/kubernetes-dashboard-token/ {print $1}')

[root@master ~]# kubectl describe secrets -n kubernetes-dashboard ${Token} |grep token |awk 'NR==3 {print $2}'

eyJhbGciOiJSUzI1NiIsImtpZCI6IlpZQmhlZXVmVXctQjlleG1ZVlhhbXZMb1k2Z1d2Z0FkaHFIRXU0MkNtZXMifQ.eyJpc3MiOiJrdWJlcm5ldGVzL3NlcnZpY2VhY2NvdW50Iiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9uYW1lc3BhY2UiOiJrdWJlcm5ldGVzLWRhc2hib2FyZCIsImt1YmVybmV0ZXMuaW8vc2VydmljZWFjY291bnQvc2VjcmV0Lm5hbWUiOiJrdWJlcm5ldGVzLWRhc2hib2FyZC10b2tlbi03bDQ3cyIsImt1YmVybmV0ZXMuaW8vc2VydmljZWFjY291bnQvc2VydmljZS1hY2NvdW50Lm5hbWUiOiJrdWJlcm5ldGVzLWRhc2hib2FyZCIsImt1YmVybmV0ZXMuaW8vc2VydmljZWFjY291bnQvc2VydmljZS1hY2NvdW50LnVpZCI6IjgzODM4NDExLWE4NGItNGQ4Ny04MjRlLWUwZjk3NGE0OGU4MSIsInN1YiI6InN5c3RlbTpzZXJ2aWNlYWNjb3VudDprdWJlcm5ldGVzLWRhc2hib2FyZDprdWJlcm5ldGVzLWRhc2hib2FyZCJ9.EQCjLReemQP8avSITvj_tjWWwSUK8Mgkt3hTYXJlXJfOtftEnQPKIE0OA32rUHMnbS7ViWSL5ju1Fie92HJ2ow8eSWfBKdFo9nvJ2jZMR97KCAP-HrUe7D98l_RjA1dyUWSkBlzQL2rhbcsbCr07AHu09bbmum4QaTkbOzv82LAvSyZe5nrWeu3bhXoOnX9narF4VMvAA18QK187SWIKb0lHJe-2uzbbsKaoTB7ntK53Vngr6uAk5H9p9auEq0ngucjA9sdX8rR_f577QjORi7WlbbDuZNUgf_oK7xep2MD1mAIiWZtx9vhuIUFoECMYkww-o9Fk01hglVUsOTflUA

7、登录Kubernetes-Dashboard

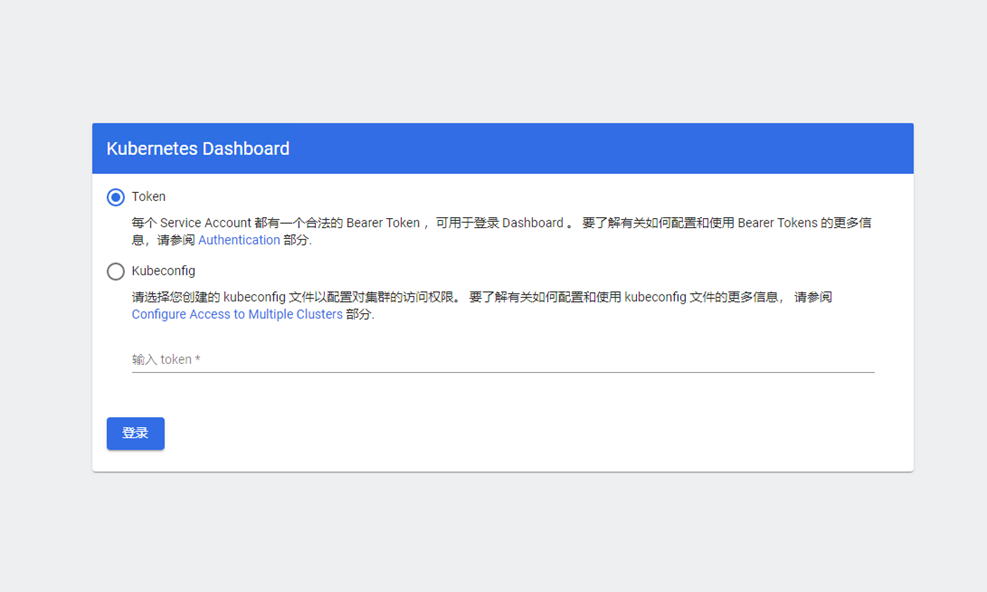

# 浏览器输入https://IP:30033/，如下图所示

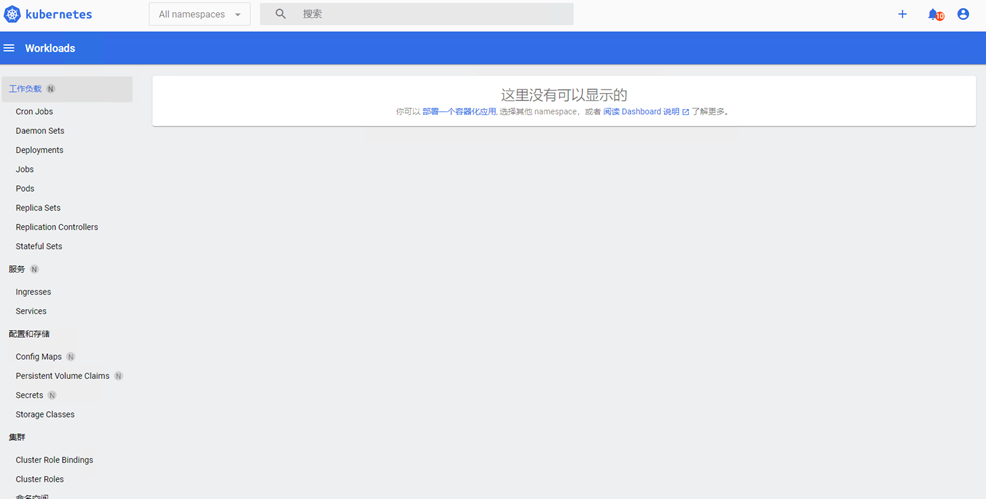

# 输入Token登录，如下图，因为权限不足导致无法显示namespace资源

8、授权kubernetes-dashboard,防止找不到namespace资源

[root@master ~]# kubectl create clusterrolebinding serviceaccount-cluster-admin --clusterrole=cluster-admin --user=system:serviceaccount:kubernetes-dashboard:kubernetes-dashboard

clusterrolebinding.rbac.authorization.k8s.io/serviceaccount-cluster-admin created

9、再次访问Kubernetes-Dashboard，如下图

10、设置Token过期时间

注意：用Token登陆kubernetes-dashboard，默认的token认证时间是900s/15分钟，失效需要重新登录非常麻烦，参数修改token过期时间为1天。

方式一：修改recommended.yaml文件，重新apply即可

[root@master ~]# vim recommended.yaml

spec:
      containers:
        - name: kubernetes-dashboard
          image: kubernetesui/dashboard:v2.2.0
          imagePullPolicy: Always
          ports:
            - containerPort: 8443
              protocol: TCP
          args:
            - --auto-generate-certificates
            - --namespace=kubernetes-dashboard
            - --token-ttl=86400    # 增加参数

[root@master ~]# kubectl apply -f recommended.yaml

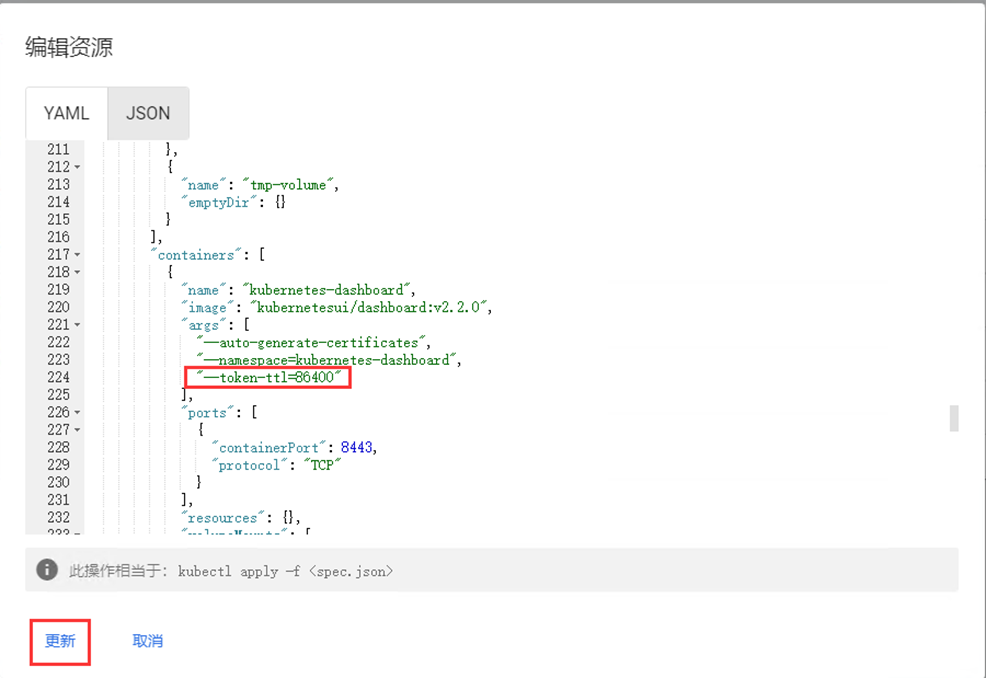

方式二：kubernetes-dashboard平台修改配置

1）选择kubernetes-dashboard命名空间

2）编辑deployment/kubernetes-dashboard配置文件

3）在对应位置添加- --token-ttl=86400

4）点击更新即可生效
